PhysBones

PhysBones are a set of components that lets you add secondary motion to objects on avatars and in worlds, permitting you to add motion to things like hair, tails, ears, clothing, wires, plants, and more! Using these well will make your avatars seem more dynamic and real, and your worlds more immersive.

An example of how to use PhysBones on an avatar can be found in the Avatars SDK. To access it, go to VRChat SDK\Samples from the menu bar at the top of the Unity window and choose the appropriate sample avatar for your platform.

VRCPhysBone​

Defines a chain of bones to be animated with PhysBones. These can be used to simulate soft-body and secondary motion like hair, tails, floppy ears, and more! It has many configuration options, and can be set up in many ways.

Additionally, PhysBones can be interacted with by you and other people! You can grab PhysBones to move them around, and pull the Trigger while holding the PhysBone to "Pose" it and hold it in position. You can also disable this in configuration to not allow posing, not allow grabbing, or allow no collisions at all. For PhysBones attached to your avatar, other people can grab and pose your PhysBones too if your interaction settings allow it!

Although not designed as such, PhysBones also serves as a reasonable cloth substitute until such time that we implement our own Cloth component.

Versions​

You can select the version of VRCPhysBone component you would like to use directly on the component. By default, the latest version will be chosen when creating a new component. Existing PhysBones will continue to use their previous versions unless manually updated and re-uploaded.

Version 1.0:

  • The base version of the VRCPhysBone component.

Version 1.1:

  • Squishy Bones update, allowing for bones to squish and length to be affected by motion.
  • Gravity now acts as a ratio of how far the bones will rotate when at rest. A positive Pull is required for bones to move in the direction of gravity.
  • Stiffness now acts as a ratio which keeps a bone in its previous orientation.

Transforms​

Root Transform - The transform where this component begins. If left blank, we assume we start at this game object.
Ignore Transforms - List of ignored transforms that shouldn't be affected by this component. Ignored transforms automatically include any of that transform's children.
Ignore Other Phys Bones - If enabled, the PhysBone ignores other PhysBones and their affected transforms beneath itself in the scene hierarchy. This option is enabled by default, and disabling may lead to unsupported behaviour.
Endpoint Position - Vector used to create additional bones at each endpoint of the chain. Only used if the value is non-zero. Usually you'll want to increase this along +Y, which points "up" the bone.
Multi-Child Type - Behavior of the root bone when multiple bone chains exist. This has three modes:

If set to Ignore, the root bone will not move, and will ignore physics. Useful for things like hair on an avatar, since you can use one PhysBone component on the root to affect all the hair bones!

If set to First, the root bone will form one continuous chain with the first bone chain in the hierarchy. Every other chain will still work, but they will start from the first bone in each respective chain rather than the root like the first chain.

If set to Average, the motion of the root bone will be the average of all the other chains. This means that the base of each chain will be able to move.

caution

If you are using a single root bone, or a single root bone with several children (but no grandchildren), you must define an endpoint position!

For example, if you put the PhysBone component on any of the RootBones below, you must define an Endpoint Position in order for PhysBones to work. This is different from Dynamic Bones!

Single Bone

  • RootBone

Multiple Children, Single Root

  • RootBone
  • ChildBone1
  • ChildBone2
  • ChildBone3
  • ChildBone4

You can also address this by adding "end bones" after each ChildBone, but that involves editing the armature.

Forces​

Integration Type defines the type of math used to simulate the motion of any transform affected by this component. Depending on which you choose, your options available in the Forces section will change. You can choose between two:

  • Simplified is a more stable method that feels a bit slower and less reactive to external impulses and forces, but is easier to configure.
  • Advanced is less stable, but allows more complicated configurations, and tends to be more reactive to external impulses and forces.
    With default settings, both of these modes act fairly similarly, but adjusting the settings and testing them out will quickly reveal how they differ.
info

Most (if not all) of the options below allow for Curves by pressing the C button next to the slider. Curves let you adjust the value over the length of the bone chain, and allow for VERY complicated setups within bone chains!

In fact, most PhysBones settings allow for the use of Curves! Learn how to use them and your PhysBones will look amazing!


Pull - Amount of force used to return bones to their rest position.
Spring - Amount bones will wobble when trying to reach their rest position. Only available in Simplified Integration Type.
Momentum - The amount bones will wobble when trying to reach their rest position. Only available in Advanced Integration Type. Despite the description being the same, the effect is slightly different from Spring.
Stiffness - The amount bones will try to stay at their resting position. Only available in Advanced Integration Type.
Gravity - Amount of gravity applied to bones. Positive value pulls bones down, negative pulls upwards.
Gravity Falloff - Only available if Gravity is non-zero. It controls how much Gravity is removed while in the rest position. A value of 1.0 means that Gravity will not affect the bone while in rest position at all. This allows you to have the effects of gravity when the bone is rotated off the initial position without affecting the bone's rest state.

One way to use the Gravity Falloff parameter is that if your avatar's hair is modeled as already being in the pose you want when standing up normally, you can use 1.0 gravity falloff. That way, gravity won't affect you when you're just standing there, and your hair will rest in its modeled position. If your hair is modeled 45 degrees straight out and you want it to be affected by gravity enough to have a nice curve (but not completely straight out or completely straight down), the slider allows you to fiddle with it and use like 0.5-0.8 to only have a fraction of gravity at rest pose.

Immobile Type changes how Immobile works.

If set to All Motion, Immobile reduces any motion as calculated from the root transform's parent. This is the default mode for new PhysBones and converted Dynamic Bones. In this mode all PhysBone movement in either scene-space or playspace will be dampened by the Immobile factor.

If set to World (Experimental), Immobile negates only positional movement from the reference of the scene root transform. Motion via animation or IK still affects the bones normally. This mode may change in the future!

In the context of an avatar you're using, this means that moving around in your playspace will still affect your PhysBones' movement as normal, but locomoting (pushing on your joystick to move) will have its movement dampened by the Immobile factor.

Limits​

Setting Limits allows you to limit the amount that a PhysBone chain can move. This is useful for situations such as avoiding hair clipping into your head when used on an avatar, and is far more performant than a collider!

Additionally, when configuring options for Limits, a visualization of those limits will appear in the Scene view when you have the PhysBone chain selected. These can be extremely helpful when fine-tuning Limits!

Limit Type has several modes. All of them allow for the adjustment of Rotation in terms of Pitch, Yaw, and Roll-- alternately, along the X, Y, and Z axes respectively.

None​

None means no limit is enabled on this bone chain. There are no configuration options.

Angle​


Angle means the bone chain will be limited to some Max Angle, centered on an axis as defined by Rotation. This is visualized as a Cone in the Scene view.

Hinge​


Hinge means that the bone chain will be limited to some Max Angle along the plane defined by the Rotation. This is visualized as a slice of a circle, similar to a pizza or a pie.

Polar​


Polar is a bit more complicated. If you take a Hinge and sweep it across Yaw by some amount, you get a segment of a sphere in Polar coordinates. You can configure Max Pitch and Max Yaw to adjust the size of the segment, and use Rotation to define where that segment is located on the sphere. The visualization for Polar is especially helpful.

Don't overuse Polar limits, as they have a non-zero performance cost. Using a huge amount (handwaving: more than 64) will probably cause some issues. If your Max Pitch and Max Yaw values are similar or the same, an Angle limit will suffice and costs less performance-wise.

Collision​

Radius - Collision radius around each bone in meters. Used for both collision and grabbing.
Allow Collision - Allows collision with colliders other than the ones specified on this component.
Colliders - List of colliders that specifically collide with these bones.

Allow Collision has three options available:

If set to True, this PhysBone will collide with global colliders. This includes each player's hands as defined by their avatar as well as any global colliders in the world.

If set to False, this PhysBone will only collide with the colliders that are listed in the Colliders list.

If set to Other, you'll be given more options to control how collisions behave based on whether this is an avatar or a world. For a PhysBone on an avatar, you can filter to colliders on this avatar and on other avatars/worlds. For a PhysBone in a world, you can set whether it's able to respond to colliders in the world, on an avatar, on an item, or on a mixture of the three.

Stretch & Squish​

Stretch Motion - The amount motion will affect the stretch/squish of the bones. A value of zero means bones will only stretch/squish as a result of grabbing or collisions.
Max Stretch - Maximum amount the bones can stretch. This value is a multiple of the original bone length. Note: Maximum Bounds
Max Squish - Maximum amount the bones can shrink. This value is a multiple of the original bone length.

Grab & Pose​

Allow Grabbing - Allows players to grab the bones. On avatars, you have the option to filter this between the user wearing the avatar and other users.
Allow Posing - Allows players to pose the bones after grabbing. On avatars, you have the option to filter this between the user wearing the avatar and other users.
Grab Movement - Controls how grabbed bones move. A value of zero results in bones using pull & spring to reach the grabbed position. A value of one results in bones immediately moving to the grabbed position.
Snap To Hand - When a bone is grabbed it will snap to the bone grabbing it.

Options​

Parameter - An option only available to PhysBones on avatars (see Udon Access in Worlds for information about how to get this data from a PhysBone in a world). This is a prefix used to provide multiple parameters to the avatar controller. For example, in the following items, setting Parameter to Tail would replace {parameter} with Tail

Once Parameter is set to any value, the following parameters will be set on your avatar's animator:

  • {parameter}_IsGrabbed [Bool] - Whether the bones currently being grabbed

  • {parameter}_IsPosed [Bool] - Whether the bones been posed after being grabbed

  • {parameter}_Angle [Float] - Range of 0.0-1.0. Normalized 180 angle made between the end bone's is from its original rest position. In other words, if you twist a bone completely opposite of its start direction, this parameter will have a value of 1.0.

  • {parameter}_Stretch [Float] - Range of 0.0-1.0. How close the bones are to their maximum stretch length.

  • {parameter}_Squish [Float] - Range of 0.0-1.0. How close the bones are to their maximum squish length.

Is Animated - Allows bone transforms to be animated. Each frame bone rest position will be updated according to what was animated. This must be enabled in order for any bone in the PhysBone chain (Root bone included!) to respect animations applied to it.

Reset When Disabled - When this component becomes disabled, the bones will automatically reset to their default position.

Gizmos​

These settings control how the PhysBone appears in the scene view of the Unity editor. They have no effect on how your PhysBone behaves.

Show Gizmos - Whether to display this component's Gizmos in the scene view. If you're not seeing them, make sure you also have Gizmos enabled in the scene view itself.
Bone Opacity - Sets the opacity of the Gizmos representing the bone itself.
Limit Opacity - Sets the opacity of the Gizmos representing the movement limits applied to the bone.

Important Notes, Usage Tips, etc​

Do not have a Constraint and a PhysBone component affecting the same game object, as this causes execution order issues.

Apply the Constraint to the parent game object instead. You can still have the source transform of the Constraint set to the original game object.

caution

PhysBones on avatars have a hard limit on the Meta Quest. This is done to prevent a reduction in performance on Meta Quest devices, which are often already low on CPU resources.

You can view those limits as the Very Poor limits for Quest described in the Minimum Displayed Performance Rank documentation.

This hard limit does not apply to worlds, but you should still consider limiting your PhysBones if your world available on mobile to avoid causing performance issues that push players out of your world.

Per-Component Limitations​

A single PhysBone component cannot affect more than 256 transforms at a time. This counts the root bone as well as all children. This also affects Dynamic Bone conversions on avatars!

However, you should aim not to have that many transforms to animate in the first place. Try merging bones in the chain upward to their immediate parents. Community-created tools like Cat's Blender Plugin can do this for you.

Changing PhysBone Properties​

PhysBone properties like Spring, Pull, Stiffness, etc. are set at initialization.

On avatars, these values are intended to be constant and cannot be animated. However, if you animate a property of a PhysBone component and then animate the component off and then on, you may get the behavior you want. Be aware that this is not a supported method of animating these properties, and will not be supported in future changes. (In other words, it might break, and if it does, we're not going to try to fix it.)

In worlds, you have the option of changing the properties of a PhysBone via Udon scripting, though you should still try to limit how often you do this. See Udon Access in Worlds for more info.

Humanoid Bones​

Do not set Humanoid bones as PhysBone Root bones. In other words, do not set Hip, Spine, Chest, Upper Chest, Neck, Head, or any of the limb bones as Roots. This will cause major issues.

Instead, duplicate the bone you want to use as root and re-parent all the children bones you want to animate to that new duplicate root. This should be done in Blender. Community-created tools like Cat's Blender Plugin can do this for you.

PhysBone Rotation​

Unlike Dynamic Bones, the root bone of a PhysBone chain is permitted to rotate. It can't translate, though. This can have some consequences with certain setups -- try things out on your own to see how it behaves.

PhysBone AV3 Parameters​

When affecting parameters on an AV3 avatar, there is no need to use Synced Parameters as defined by the VRCExpressionParameters object. These parameters are already updated on both the local and remote machines, as both will be running PhysBones.

PhysBone Immobile Behavior​

Dynamic Bones bases its Inert value from where the component is placed, not the root transform. This is probably a Dynamic Bones bug. As such, PhysBones bases its Immobile value from the root transform. This may affect behavior in some cases.

Optimal Component Usage​

Because of the multi-threaded nature of PhysBones, it isn't always the most efficient to put all bones into a single chain. Multiple components allows us to break up the work across threads. However, you should still strive to have fewer components... but it's not as bad to have a few on your avatar or world object as it was with Dynamic Bones.

If you really need a number, you should consider splitting sets of chains when you're getting over 128 transforms affected by a single component. If you have a dress with 256 bones, and it splits at a root, splitting it into two or three components will work.

However, if you're just dealing with something on the order of 32 bones... don't worry about it. As you can probably tell, these aren't strict rules! We'll likely introduce some soft warnings later on when something looks like it should be set up a different way.

Maximum Bounds​

Each VRCPhysBone component has a bounding box that grows and shrinks as bones move around. These bounding boxes aid the collision detection for players touching and grabbing PhysBones. For efficiency, bounding boxes are forced to a maximum of 10×10×10 meters. PhysBones can go outside of this range and continue to work as expected. However, players may be unable to touch or grab those bones depending on their location.

The bounding box only accounts for bones with collision and a radius greater than zero. In situations where you want to provide extremely long stretching, as long as bones with collision exist past the stretching point, you can avoid hitting this maximum bounds limit.

Udon Access in Worlds​

Despite originally being designed for avatars, PhysBones can also be used in worlds. Instead of using an animator to interact with a PhysBone in a world, you should use Udon scripting instead. Here are the key differences when it comes to working with a PhysBone in a world:

  • Access a PhysBone using the type VRCPhysBone, which is in the namespace VRC.SDK3.Dynamics.PhysBone.Components.
  • To detect when a PhysBone is grabbed, released, posed or unposed, you can attach an UdonGraph or UdonSharp behaviour to the same game object as the PhysBone component and use the following events:
    • OnPhysBoneGrabbed(PhysBoneGrabbedInfo physBoneInfo) - Called when the PhysBone is grabbed by a player.
    • OnPhysBoneReleased(PhysBoneReleasedInfo physBoneInfo) - Called when the PhysBone is released from a player's grab.
    • OnPhysBonePosed(PhysBonePosedInfo physBoneInfo) - Called when the PhysBone is locked to a pose by a player.
    • OnPhysBoneUnPosed(PhysBoneUnPosedInfo physBoneInfo) - Called when the PhysBone has its pose released.
  • You can check if a PhysBone is currently grabbed or posed using the properties IsGrabbed and IsPosed respectively.
  • You can read the angle, squish and stretch values for a PhysBone at any time using the properties Angle, Squish and Stretch.
  • You can both read and set all the properties of a PhysBone via the appropriately named fields (pull, stretch, etc.), as well as the curves those properties can use (pullCurve, stretchCurve, etc.).
    • If you ever change these properties, you must also call ApplyConfigurationChanges() on the PhysBone after you've finished making all of your changes, otherwise they won't actually be applied back to the PhysBone.
    • Configuration changes to PhysBones can get expensive! If you overdo it, you might cause performance problems that make your world uncomfortable for players - avoid changing these properties too frequently, and try to batch together as many changes as possible before applying them.
  • If your PhysBone allows grabbing or posing, you can use the Udon methods below to force those interactions to stop. These only run on the local client, so if you want to release grabs or poses for everyone, you'll need to call these from a Network Event that all clients receive.
    • When you call ReleaseGrabs(), the local player will be forced to let go of the PhysBone if they're currently grabbing it.
    • When you call ReleasePoses(), any frozen poses applied to the PhysBone will be released, allowing it to go back to its natural shape.

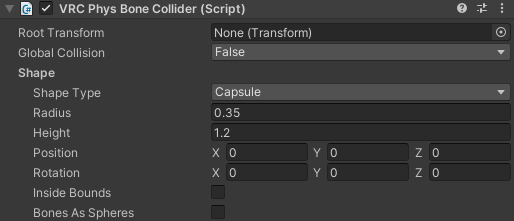

VRCPhysBoneCollider​

Defines a collider that will affect PhysBones that are configured correctly.

Root Transform - Transform where this collider is placed. If empty, we use this game object's transform.
Global Collision - All PhysBones in the selected types of content will treat this collider as part of their Colliders list. The PhysBone's Allow Collision rules will still apply when deciding whether to actually process a collision. This property is available to PhysBone colliders in worlds only.
Shape Type - Type of collision shape used by this collider. You can choose between a Sphere, Capsule, or Plane collider.
Radius - Size of the collider extending from its origin.
Height - Height of the capsule along the Y axis, including the half-spheres at each end. Only used when Shape Type is set to Capsule.
Position - Position offset from the root transform.
Rotation - Rotation offset from the root transform.
Inside Bounds - When enabled, this collider will contain bones within its bounds instead of keeping them out.
Bones As Sphere - When enabled, this collider will treat PhysBone collision radii as spheres centered on the bone's position rather than capsules running the length of the bone.

Standard Colliders​

On avatars, a set of "Standard Colliders" are defined in the Avatar Descriptor, in a section called “Colliders”. This section lets you define a number of standard colliders that exist on every avatar. These will be setup automatically if you don’t touch this, but they may also be tweaked to exactly fit your avatar. These colliders do not affect the performance rating.

  • Head
  • Torso
  • Hands L/R
  • Feet L/R
  • Fingers L/R
    • Index
    • Middle
    • Ring
    • Little

These colliders act primarily as Contact Senders using the built-in body part tags that other people can detect with their avatars. However, the finger and hand colliders are also used to create global PhysBone Colliders that can be used to affect other people’s PhysBones as well as PhysBones in the world.

VRCPhysBoneRoot​

This component lets you define the movement root for one or more PhysBone components and set whether they should update in fixed time or real time as they move. This component is optional and is only available to worlds.

Timing - Sets the timing mode used by all VRCPhysBone chains that are children of the GameObject this component is attached to.

You can choose between three timing options:

  • Automatic (Default): Child PhysBones automatically determine whether to move in fixed or real time. It can switch between the two dynamically, based on how the transform moves, to minimize visible jitter.
  • Fixed Time: Child PhysBones update in fixed time, i.e., using the fixed time step corresponding to Unity's FixedUpdate() callback.
  • Real Time: Child PhysBones update in real time, i.e., using the variable time step corresponding to Unity's Update() callback.

When no movement root is defined manually, PhysBones try to automatically determine the update timing they should use.

Automatic Dynamic Bone Conversion​

note

Dynamic Bone components in worlds are not automatically converted into PhysBones. We recommend using PhysBones instead to improve performance and allow players to grab and interact with PhysBones.

The client will always automatically convert Dynamic Bones on avatars over to PhysBones as the avatar is loaded. This is done to increase overall performance and is also necessary for interactions between avatars.

By default, Dynamic Bone conversions use Advanced mode, as we're able to more precisely match Dynamic Bone behavior with the Advanced integration method. Additionally, DB conversions use Ignore for the Multi-Child type. This may cause issues with some edge-case Dynamic Bone setups, but using First or Average causes unwanted behavior in almost all cases during conversion.

It is important to note that Dynamic Bones and PhysBones are not identical. The in-program conversion process does its best to match behavior as closely as possible, but it will never be perfect! The goal of the automatic conversion is to have most setups working decently well and not breaking, not to perfectly replicate behavior. It is expected that all users making avatars for VRChat have now moved over to using PhysBones instead of Dynamic Bones.

Manual Dynamic Bone Conversion​

You can choose to use the SDK to convert your avatar from Dynamic Bones to PhysBones.

This process deletes the previous Dynamic Bone components from your avatar and can not be easily reversed. As a result, make a backup of your avatar before attempting this conversion.

You can access this tool in the SDK by looking at the Build Control Panel, or by accessing it in the Unity menu under VRChat SDK/Utilities/Convert DynamicBones to PhysBones. You must select the avatar beforehand for this to work.

Unmigrated Dynamic Bone Components​

Some features and behaviors in Dynamic Bones do not exist in PhysBones, and will not migrate.

Force - Dynamic Bone Gravity and Force values in the X or Z directions are ignored as they have no equivalent in PhysBones.

Dynamic Bone Deprecation​

Dynamic Bones have been completely removed from VRChat in the context of avatars. That means all older avatars still using Dynamic Bones will now be using automatically generated PhysBones instead.

Dynamic Bones are currently still usable in worlds, but we may eventually also deprecate these in a similar way to avatars by automatically converting them into PhysBones as the world is loaded.
